• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1959–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184465

• • Brand: Aristona

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: SA6015T/00L - Aristona; Eindhoven

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 238 x 135 x 60 mm / 9.4 x 5.3 x 2.4 inch

• Notes

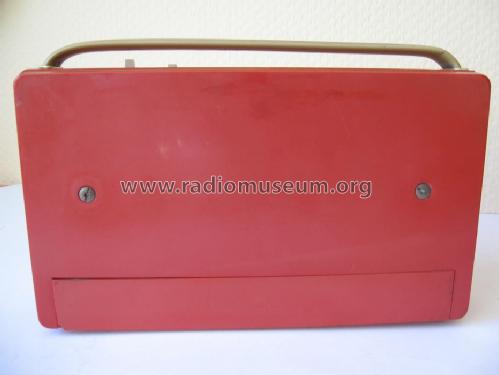

• Various colours available. The 00L version has a red case and a white front.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jos van den Broek. See "Data change" for further contributors.
