• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304032

• • Brand: Aristona

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF121 AF124 AF126 AF126 AF126 AF126 AC125 AC128 AC128 AA119 BA102 OA90 1,4St1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

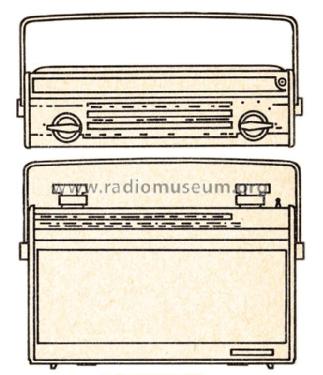

• Model: SA7241T - Aristona; Eindhoven

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 140 x 70 mm / 9.4 x 5.5 x 2.8 inch

• Notes

• Dioden: 3 x AA119, 1 x BA102, 2 x OA90, 2 x 1,4St1

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
