SA9120A
Aristona; Eindhoven
- Country
- Netherlands
- Manufacturer / Brand
- Aristona; Eindhoven
- Year
- 1964 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 304064
-
- Brand: Aristona

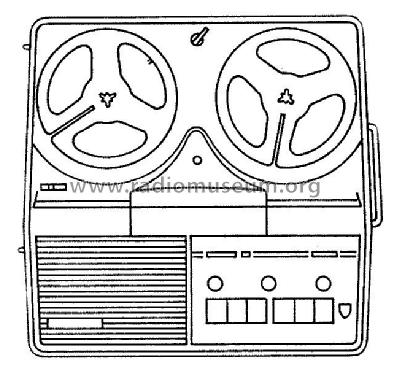

Bild aus Aristona Programm 1966
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Power out
- 2.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: SA9120A - Aristona; Eindhoven
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 370 x 370 x 175 mm / 14.6 x 14.6 x 6.9 inch
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Mentioned in
- - - Manufacturers Literature ("Aristona - collectie 1966 - technische gegevens")
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
