SA3211A
Aristona; Eindhoven
- Country
- Netherlands
- Manufacturer / Brand
- Aristona; Eindhoven
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94065
-
- Brand: Aristona

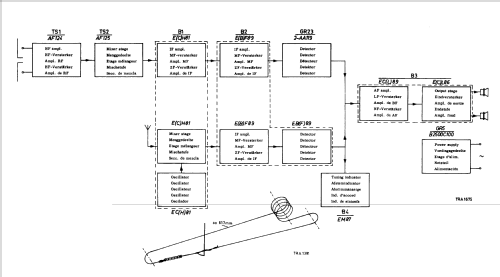

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-127; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: SA3211A - Aristona; Eindhoven
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 450 x 160 x 200 mm / 17.7 x 6.3 x 7.9 inch
- Notes
-
Similar models Mediator MD3211A /16, Philips B3X51A/16, Hornyphon Attache W345A.
Similar chassis used in many different sets, including Philips B3A53A.
- Net weight (2.2 lb = 1 kg)
- 4.6 kg / 10 lb 2.1 oz (10.132 lb)
- Author
- Model page created by Peter Spies. See "Data change" for further contributors.
- Other Models
-
Here you find 211 models, 175 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
