Standard Radiogram FC48
Armstrong Audio / Wireless & Television / Manufacturing; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Armstrong Audio / Wireless & Television / Manufacturing; London
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 349281
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Standard Radiogram FC48 - Armstrong Audio / Wireless &
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 41 x 35 x 19 inch / 1041 x 889 x 483 mm
- Notes
-
Wavebands:-
- SW1 16-51 metres
- SW2 50-120 metres
- MW 190-550 metres
- LW 1000-2000 metres
Tuning magic eye
Four-colour illuminated dial
Independent controls giving bass and treble lift and cut with thermometer-type indicators
Collaro RC54 Autochanger
See the smaller cabinet version Twin Radiogram.
- Price in first year of sale
- 69.00 GNS
- Mentioned in

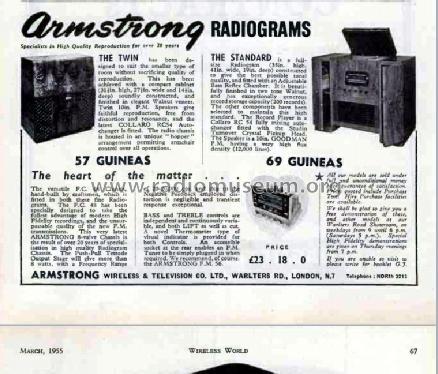

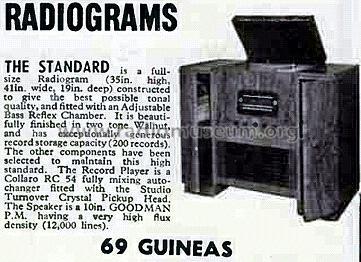

- -- Original prospect or advert (Wireless World March 1955 page 66)
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
