• Country
• France

• Manufacturer / Brand
• Artex; Paris, Montreuil-Sous-Bois

• Year
• 1950 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 230450

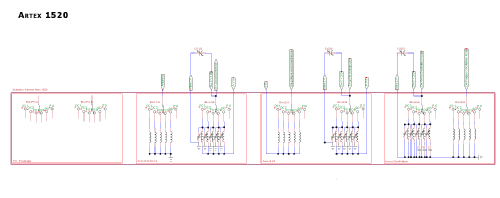

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Bloc 1520 - Artex; Paris, Montreuil-Sous-

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 130 x 130 x 55 mm / 5.1 x 5.1 x 2.2 inch

• Notes

• GO
  2 x PO
  2 x OC

  Superhet-Spulensatz: Oszillator (incl.Padding) und Eingangskreis.

• Author
• Model page created by Laurent Thimonnier. See "Data change" for further contributors.
