568-A Phantom Belle Ch= 518
Arvin, brand of Noblitt-Sparks Industries
- Produttore / Marca
- Arvin, brand of Noblitt-Sparks Industries
- Anno
- 1937/1938
- Categoria
- Radio (o sintonizzatore del dopoguerra WW2)
- Radiomuseum.org ID
- 33061
Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di tubi
- 5
- Principio generale
- Supereterodina (in generale); ZF/IF 455 kHz
- Gamme d'onda
- Onde medie (OM) e tropicali/polizia (150-200m).
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110 Volt
- Altoparlante
- AP elettrodinamico (bobina mobile e bobina di eccitazione/di campo) / Ø 5 inch = 12.7 cm
- Potenza d'uscita
- 3.5 W (qualità ignota)
- Materiali
- Mobile in legno
- Radiomuseum.org
- Modello: 568-A Phantom Belle Ch= 518 - Arvin, brand of Noblitt-Sparks
- Forma
- Soprammobile basso, con andamento orizzontale (grosse dimensioni).
- Annotazioni

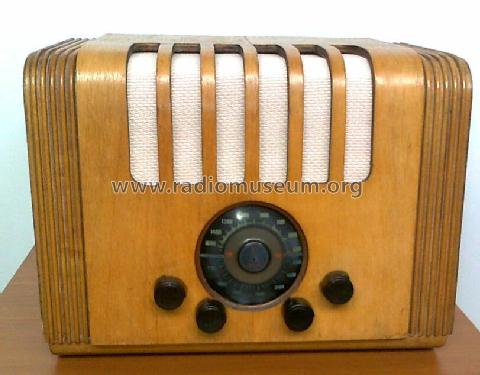

- The Arvin Phantom Belle model 568-A is featured in the flier "New 1938 Arvin Radios" from 1937 which emphasizes on the "Phantom Filter Circuit (in "Life" October 18th 1937) and in ads on "ten years of radio progress". Some models feature also Arvin's "Presto-Station-Changer" for selecting one out of 10 stations - like with a telephone dial. But the Arvin Phantom Belle model 568-A has no buttons. It is a smaller table radio in walnut and two-tone ivory and mahogany finish with 5 wrap-around vertical grille bars.
- Fonte esterna dei dati
- Ernst Erb
- Riferimenti schemi
- Rider's Perpetual, Volume 8 = 1937 and before
- Altri modelli
-
In questo link sono elencati 695 modelli, di cui 485 con immagini e 552 con schemi.
Elenco delle radio e altri apparecchi della Arvin, brand of Noblitt-Sparks Industries
Collezioni
Il modello 568-A Phantom Belle fa parte delle collezioni dei seguenti membri.
Discussioni nel forum su questo modello: Arvin, brand of: 568-A Phantom Belle Ch= 518
Argomenti: 1 | Articoli: 11
Does anyone recognize this Arvin radio? It has a 518 chassis, and I think that it might be a 518DW. The knobs are not correct (Allied?)
Thank you,
Bob
Bob Isaac, 05.Apr.10
