• Country
• Sweden

• Manufacturer / Brand
• ASEA, Stockholm

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243795

• Number of Tubes
• 5

• Valves / Tubes
• MECH42 6BA6 6AV6 MEL41 MAZ41

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

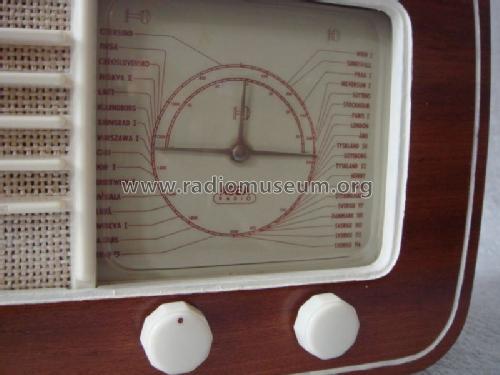

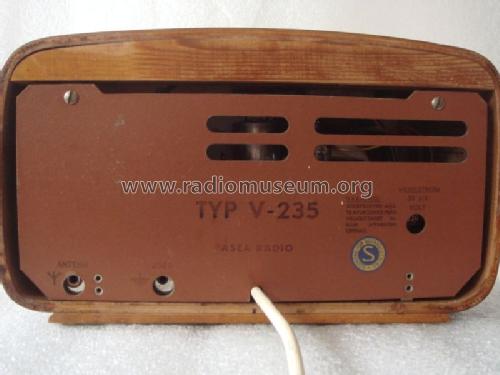

• Model: V-235 - ASEA, Stockholm

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 180 x 135 mm / 12.6 x 7.1 x 5.3 inch

• Notes

• SW: 18 ... 50 m.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Author
• Model page created by Detlef Schwenke. See "Data change" for further contributors.
