CB-1A Converter-Booster
Astatic Corp.; Conneaut (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Astatic Corp.; Conneaut (OH)
- Year
- 1955/1956
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 100628
-
- alternative name: Omnitronics LLC
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- 1N82
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: CB-1A Converter-Booster - Astatic Corp.; Conneaut OH
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 9 x 6 x 5.75 inch / 229 x 152 x 146 mm
- Notes
-

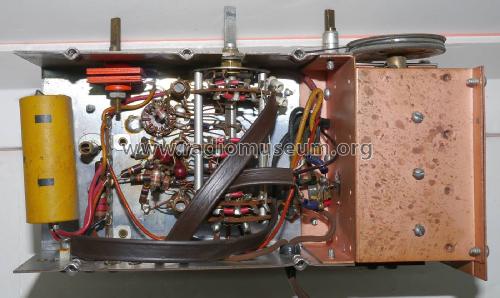

The Astatic CB-1A is a combination UHF converter and VHF TV booster. It permits continuous tuning through all UHF channels (14-83) on VHF TV sets and provides additional gain for improved reception on the VHF channels (2-13). The circuit consists of two tuned preselectors, a 6AF4 oscillator and a 1N82 diode mixer. Uses two-stage neutralized push-pull amplifier with a 6J6 driving a 6BQ7A grounded grid amplifier. There is a four-position control knob for straight through VHF, boost on low VHF channels, boost on high VHF channels, and UHF operation.
- Net weight (2.2 lb = 1 kg)
- 6 lb 2 oz (6.125 lb) / 2.781 kg
- Price in first year of sale
- 35.00 $
- Literature/Schematics (1)
- Allied Radio Catalog (Knight) (1955, page 203)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
