• Country
• Australia

• Manufacturer / Brand
• Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

• Year
• 1943–1945

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 339436

• • alternative name: Radio Corp.of Australia

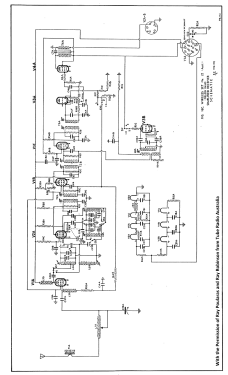

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 1D5GP 1C7G 1H6G 1H6G 1F5G 6U7G 6H6GT 807

• Number of Transistors

• Semiconductors
• Vibrator Vibrator

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Wireless Set No.22 Yellow Band. - Astor brand, Radio Corporation

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Notes

• The set was produced by Radio Corporation, closely resembling the British No.22, but using readily available Australian components.

  The set was intended as a primary vehicle station with facilities for quick removal from the vehicle to be used as a ground station. Transport by man-pack was by three man-carried loads.

  Immersion covers were provided with the man-carried station for fully water-proofing the radio for use in beach landings and river crossings.

  Covered 2 to 8 MHz in two bands.

  Production commenced in March 1943.

  Set consists of the transceiver itself and a separate vibrator power supply unit.
  The vibrator power supply operates from a 12 V accumulator developing 300 V at 80 mA for the transmitter and 150 V, dropped by a series resistor for the receiver.

• Literature/Schematics (1)
• - - Manufacturers Literature (ZAA 4814 Wireless set no. 22 (Aust.) yellow band series: 1944)

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
