M29A
Médiator; Paris
- Country
- France
- Manufacturer / Brand
- Médiator; Paris
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87952

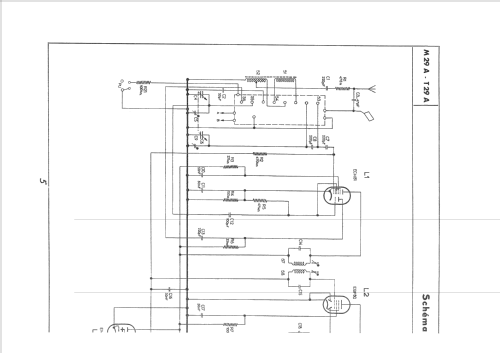

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 225; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
- Power out
- 2.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: M29A - Médiator; Paris
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 345 x 212 x 167 mm / 13.6 x 8.3 x 6.6 inch
- Notes
-
4 gammes d'ondes: PO 184 à 577 m, GO 1070 à 2000 m, OC 16,48 à 40,8 m, bande étalée 39,2 à 50,8 m. Cadran verre. Clavier 5 touches.
Coffret polystyrène bordeaux, façade ivoire, décor de grille HP doré.
Équivalent au Ténor T29A (/01) et Atlantic A82A à l'exception des couleurs différentes.
Trois exécutions:
- M29A: coffret bordeaux, décor peint doré (grille HP)
- M29A /01: coffret bordeaux, décor peint doré
- M29A /02: coffret ivoire, décor peint doré

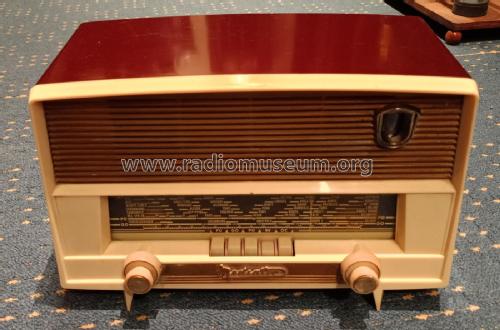

Bordeaux/Gold (speaker grill) cabinet.
Compare to models M29A /01 and M29A /02 (with other colors).
Dial lamps: 2 x 8045D (6,3V/0,32A).
Ranges: LW 150 to 280 kHz; MW 520 to 1630 kHz; SW1 5,93 to 7,65 MHz; SW2 7,35 to 18,2 MHz.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Source of data

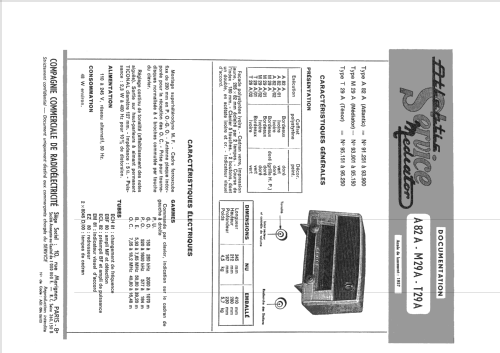

- -- Original-techn. papers.
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
