TR-102A / TR-102B

Audex AB; Gothenburg, Hisingen

Data
Forum
Pictures
Collections

  • Year
  • 1971–1981 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 351122

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

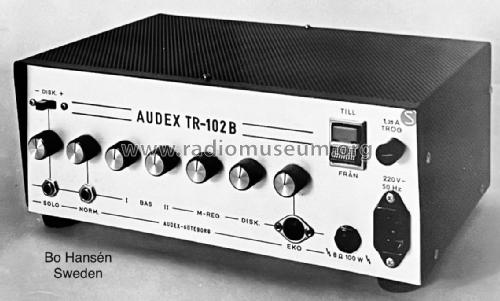

  • Model: TR-102A / TR-102B - Audex AB; Gothenburg, Hisingen
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 310 x 120 x 210 mm / 12.2 x 4.7 x 8.3 inch
  • Notes

  • Audex TR-102 series, 100 watt electric guitar amplifier, manufactured between 1971 and 1981, was available in several versions as A and B, both in 4 or 8 ohms.

    The A version customized for guitar and B version for bass, both with 4 band tone controls that were a signature of Audex amplifiers.

    Transistor built with a reliable power amp that has protection for short circuit and over temperature.

    The price around 1974/75 in Sweden was SEK 1,750.

  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Author
  • Model page created by Bo Hansen. See "Data change" for further contributors.
