- Country
- France
- Manufacturer / Brand
- Au Pigeon Voyageur, G. Dubois (Audios); Paris
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 211987
Audios Cat. 1934/35 p.41
Audios Cat. 1934/35 p.41
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org

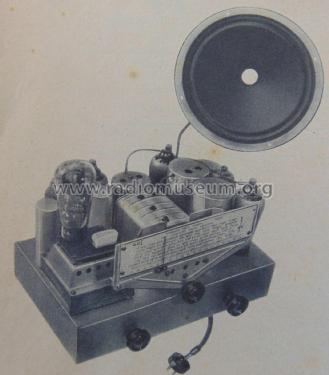

- Model: PV 67 - Au Pigeon Voyageur, G. Dubois
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 340 x 220 x 190 mm / 13.4 x 8.7 x 7.5 inch
- Notes
-
Ebènisterie voir type PV67
- Price in first year of sale
- 970.00 FRF
- Mentioned in
- Le Grand Livre de la TSF Ref 3673 p.18
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
- Other Models
-
Here you find 52 models, 47 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Au Pigeon Voyageur, G. Dubois (Audios); Paris
