• Country
• Austria

• Manufacturer / Brand
• AudioTon (Grünwald) Electronics; Wien

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164441

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

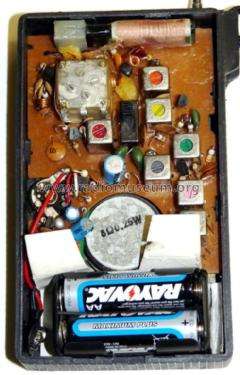

• Model: Solid State Portable FM/AM Radio 120 - AudioTon Grünwald Electronics;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 82 x 140 x 42 mm / 3.2 x 5.5 x 1.7 inch

• Notes
• FM/AM Portable, Frequenzbereich: FM 88 - 108 MHz, AM 540 - 1600 KHz, Teleskopantenne 50 cm, Ferritantenne 5,5 cm

• Net weight (2.2 lb = 1 kg)
• 0.260 kg / 0 lb 9.2 oz (0.573 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
