- Country
- France
- Manufacturer / Brand
- Barthe Radio, Barthe-Audio; Paris, Saint-Martin-de-Londres
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255962
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

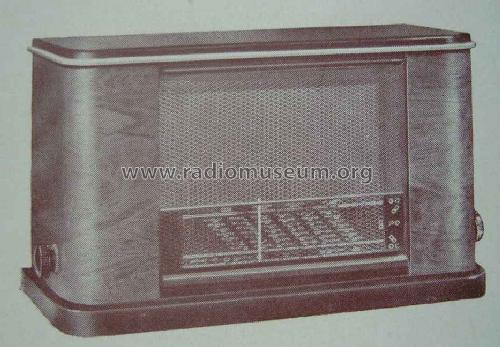

- Model: 36 - Barthe Radio, Barthe-Audio;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 280 x 220 mm / 18.9 x 11 x 8.7 inch
- Notes
-
3 gammes d'ondes:
OC 16,4 à 51,75 m,
PO 188 à 570 m,
GO 1500 à 2000 m.
Prise pour pick-up et HP supplémentaire.Ébénisterie noyer verni au tampon.
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- Mentioned in

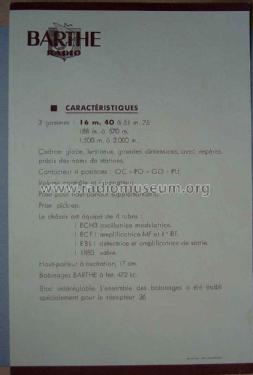

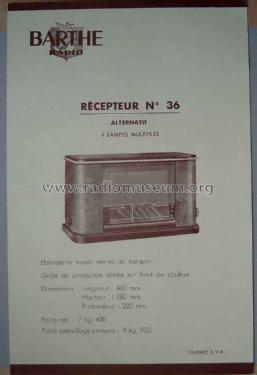

- -- Original prospect or advert (Dépliant modèle)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
