Grand Prix TG/LMU ab 85672

Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 25918

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • 3
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 9 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 7 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Grand Prix TG/LMU [ab 85672] - Becker, Max Egon,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 93 x 188 mm / 7.1 x 3.7 x 7.4 inch
  • Notes

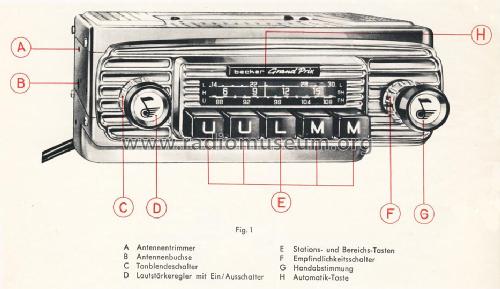

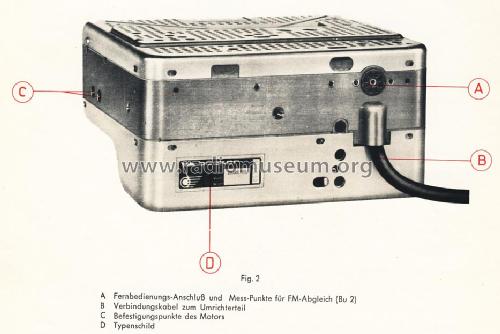

  • Becker Grand Prix TG/LMU; Automatische Senderwahl mit Handabstimmung; Sendervorwahl über Drucktasten; automatischer Verpolungsschutz; Anschlüsse für KW-Adapter Reims, Fernbedienung Automatik, Automatikantenne; 3-stufiger Empfindlichkeitsschalter. Ausführung: 2 Druckgußgehäuse. Stromversorgungsteil/Endstufe "Umrichter 502": 180 x 54 x 90 mm, 1,5 kg.
  • Net weight (2.2 lb = 1 kg)
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
  • Price in first year of sale
  • 595.00 DM
  • External source of data
  • Erb
  • Mentioned in
  • -- Original-techn. papers.
