- Country
- People's Republic of China
- Manufacturer / Brand
- Beijing 北京无线电器材厂 Beijing Radio Equipment Factory; Beijing
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177596
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Peony 牡丹 101D - Beijing 北京无线电器材厂 Beijing Radio
- Shape
- Tablemodel, low profile (big size).
- Notes

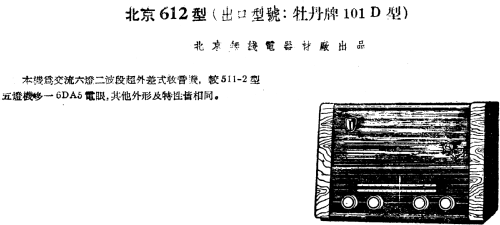

- The model Peony 101D is the export version of the model Beijing 612. They have the same tube line up as model 511-2 but also the magic eye 6DA5. 612 and 101D receive broadcast band 520 - 1600 kHz and two SW bands, 11.5 - 23 MHz and 5.7 - 11.7 MHz. This is 13 through 52 m. They have 3 IF filters. We don't know yet the differences between those models.
- Literature/Schematics (1)
- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 278.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
