• Country
• France

• Manufacturer / Brand
• Belcanto Radio (Bel-Canto), J. Cavalerie; Toulouse

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230170

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBC3 CL6 CY2

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

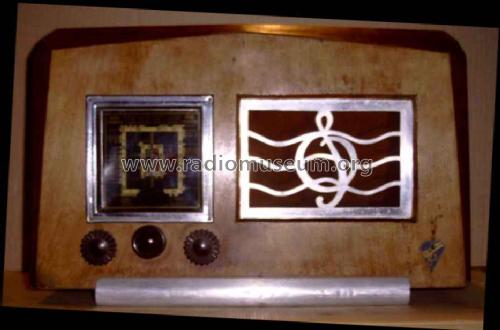

• Model: Inconnu - Unknown 1 - Belcanto Radio Bel-Canto, J.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 295 x 265 mm / 18.9 x 11.6 x 10.4 inch

• Notes

• Le jeu de lampes n'est pas certain.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
