Millivoltmètre EV25
LIE (L.I.E.) Belin; Montreuil-sous-Bois, Rueil-Malmaison
- Country
- France
- Manufacturer / Brand
- LIE (L.I.E.) Belin; Montreuil-sous-Bois, Rueil-Malmaison
- Year
- 1964 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 281382
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115; 127; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Millivoltmètre EV25 - LIE L.I.E. Belin; Montreuil-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 210 x 310 x 145 mm / 8.3 x 12.2 x 5.7 inch
- Notes
-

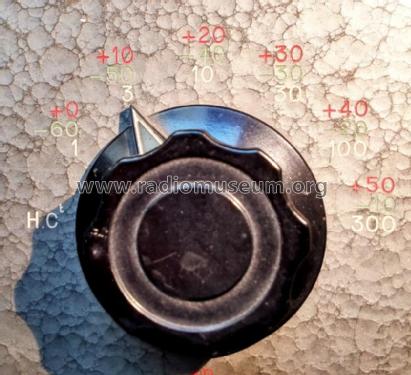

Röhren-Millivoltmeter mit den Messbereichen
1-3-10-30-100-300 mV (-60, -50, -40, -30, -20, -10 dB)
1-3-10-30-100-300 V (0, +10, +20, +30, +40, +50 dB)Eingang: Bananenbuchse 4,0mm.
Externer Ausgang: 6,0 mm Klinke
- Author
- Model page created by Tom Martens. See "Data change" for further contributors.
