80 volt rectifier
Berrens, J.-H. (JHB, J.H.B.), Abelé; Paris
- Country
- France
- Manufacturer / Brand
- Berrens, J.-H. (JHB, J.H.B.), Abelé; Paris
- Year
- 1925 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 263142
- Number of Tubes
- 2
- Valves / Tubes
- Wave bands
- - without
- Power type and voltage
- Line (AC, UC or DC not known) / 80 Volt
- Material
- Various materials
- from Radiomuseum.org
- Model: 80 volt rectifier - Berrens, J.-H. JHB, J.H.B.,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 200 x 140 x 300 mm / 7.9 x 5.5 x 11.8 inch
- Notes
-

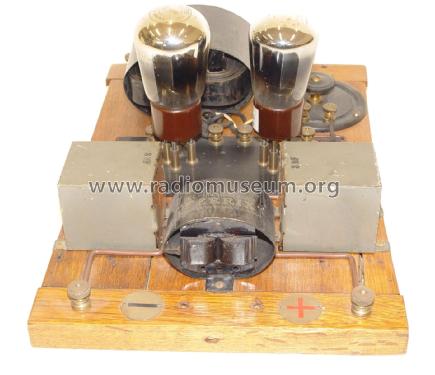

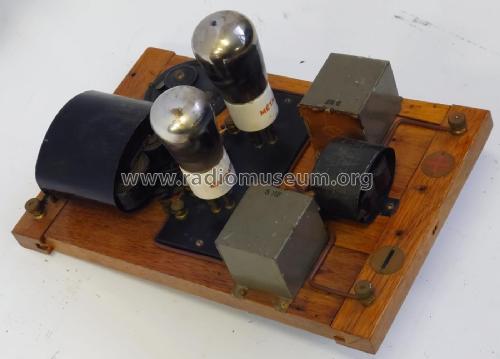

80 volt rectifier with two triode tubes (Replace the plate battery).
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Literature/Schematics (2)
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 455)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
