• Country
• Switzerland

• Manufacturer / Brand
• Biennophone; (Marke)

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 272180

• • alternative name: Sport AG Biel || Velectra AG

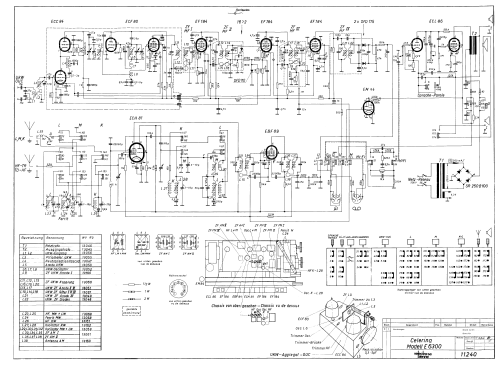

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC84 ECF80 EF184 EF184 EM84 EF184 ECH81 EBF89 ECL86

• Number of Transistors

• Semiconductors
• 16P2 SFD110 SFD115 SFD115 SR250B100

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

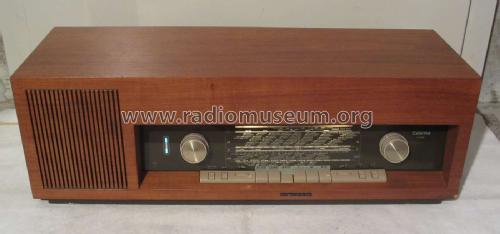

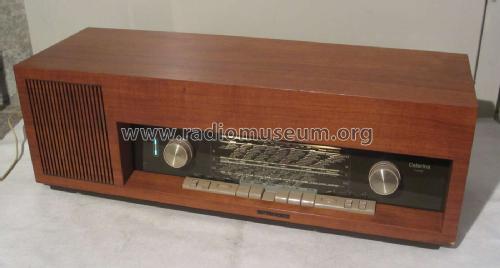

• Model: Celerina E6300 [Flachform] - Biennophone; Marke

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 730 x 245 x 245 mm / 28.7 x 9.6 x 9.6 inch

• Notes

• Drucktasten, Klangregler, drehbare Ferritantenne, eingeb. Dipol, HF-TR Skala und Eingang, schaltbarer LS-Ausgang. Ovallautsprecher 250 x 160 mm. Getrennte Empfangsteile für AM und FM. FM/UKW 88 bis 104 MHz, Cascode-Vorstufe. Mit PTT Prüfzeichen.

  Siehe auch Biennophone Celerina E6300 in klassisch symmetrischer Form.

  Separate controls for treble and bass. Word/Music switch. Hi-Fi/normal switch. Sockets for 2 external speakers with switch to exclude the internal speaker and insert them. Turntable input and recorder connection.

• Mentioned in
• -- Schematic

• Author
• Model page created by Walter Haring. See "Data change" for further contributors.
