• Country
• Italy

• Manufacturer / Brand
• Binson; Milano

• Year
• 1972 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 119519

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EM84

• Number of Transistors
• 14

• Semiconductors
• BC109 BC108 BC107 BC140 unknown_tr AA119

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Other Recorder/Player

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

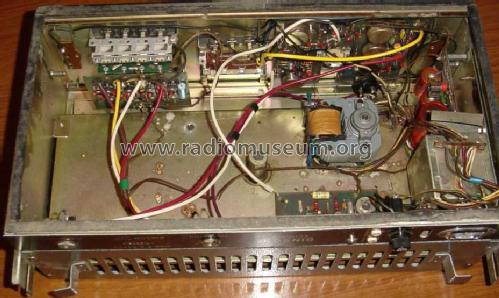

• Model: Echorec PE603-T [semiconductors] - Binson; Milano

• Shape
• Rack

• Dimensions (WHD)
• 428 x 146 x 290 mm / 16.9 x 5.7 x 11.4 inch

• Notes

• Delay time 350-375 ms. See also model PE603T with tubes instead of transistors.

  Semiconductors listed once per type.

• Source of data
• -- Schematic

• Author
• Model page created by Jose Luis Campayo-Soriano. See "Data change" for further contributors.
