RF Power Meter 4381 Analyst
Bird Technologies, Bird Electronic Corp., Bird Engineering Co.; Cleveland (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bird Technologies, Bird Electronic Corp., Bird Engineering Co.; Cleveland (OH)
- Year
- 1981 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 342816
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Batteries / addl. power jack
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: RF Power Meter 4381 Analyst - Bird Technologies, Bird
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 158 x 93 x 226 mm / 6.2 x 3.7 x 8.9 inch
- Notes
-
The Bird RF Power Meter 4381 Analyst has the following features:
- Forward or reflected power meter with operating frequencies from 0.45 to 2,300 MHz with power measurement range from 0.1 to 10,000 Watts in CW or FM.
- Four digit display with automatic comma placement.
- Measurement options: Emitted power, both forward and reflected in Watts or dBm; VSWR; return losses in dB; peak power in Watts; and modulation in percentage.
- Option to detect and store the minimum/maximum power.
- Powered by rechargeable Ni-Cad batteries and equipped with a battery charger.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Mentioned in
- -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 3, March 1981.)

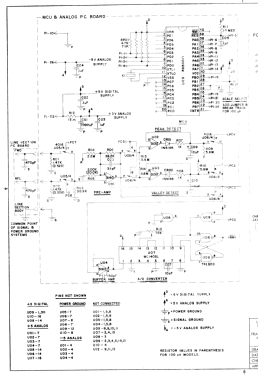

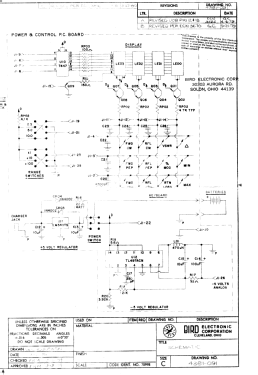

- Literature/Schematics (1)

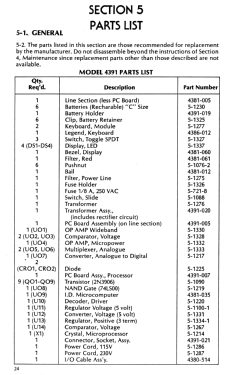

- -- Original-techn. papers. (Original "Instruction Book" for series 4380 by Bird)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
