Chicago Stereo

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1961 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 314514
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; Export model
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Power out
  • 20 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Chicago Stereo - Blaupunkt Ideal, Berlin,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 32.5 x 28.75 x 16 inch / 826 x 730 x 406 mm
  • Notes

  • Blaupunkt Chicago Stereo is an export model for the USA. Plug-in jack for Multiplex adapter to receive stereophonic FM transmissions.

    Wavebands:

    • FM 87.6 to 108 MHz
    • SW 5 ... 13 MHz
    • AM/BC 515 ... 1620 kHz

    Record changer: PE 66

  • Net weight (2.2 lb = 1 kg)
  • 80 lb (80 lb 0 oz) / 36.320 kg
  • Mentioned in

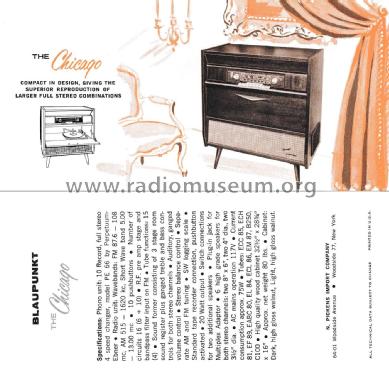

  • -- Original prospect or advert (N. Pickens Import Company New York)
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
