Automatik Stereo Decoder VI (6) 25.900
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1965
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 156004
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / DC 215 & 250 / AC 6,3 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

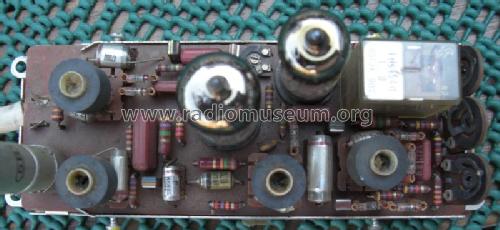

- Model: Automatik Stereo Decoder VI 25.900 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 160 x 70 x 60 mm / 6.3 x 2.8 x 2.4 inch
- Notes
- Der Blaupunkt Automatik-Stereo-Decoder VI 25900 basiert auf dem Grundig Stereo-Decoder 6 und wurde von Grundig produziert. Wurde unter anderem im Hi-Fi Steuergerät Santiago 25555 eingebaut.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Literature/Schematics (1)
- -- Original-techn. papers. ( )
- Author
- Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
