Lautsprecherbox LAB 061 7.626.950
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1966
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 261491
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

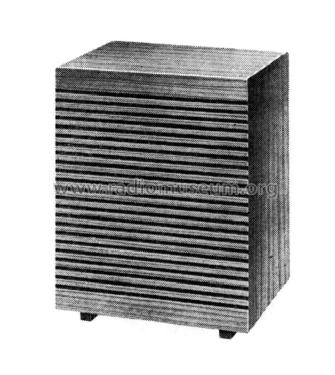

Aus dem Serviceblatt
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Lautsprecherbox LAB 061 7.626.950 - Blaupunkt Ideal, Berlin,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 180 x 232 x 175 mm / 7.1 x 9.1 x 6.9 inch
- Notes
-
Kleine Lautsprecherbox LAB 061
mit Oval-Lautsprecher 150 x 210 mm. Belastbarkeit: Dauerbelastung 4 Watt, Grenzbelastung 6 Watt. Übertragungsbereich: 75 bis 13000 Hz. Volumen: 4,3 Liter.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
