• Country
• France

• Manufacturer / Brand
• Bouyer, Paul (Harmonic Radio); Montauban, Paris

• Year
• 1970 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 131340

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 90-225 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

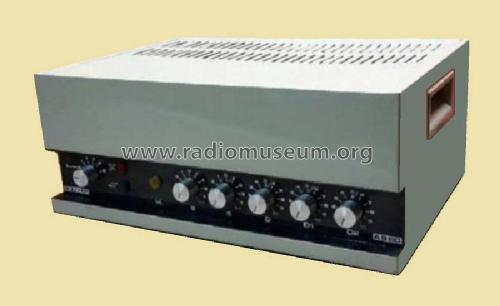

• Model: Amplificateur - Amplifier AS60 - Bouyer, Paul Harmonic Radio;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 422 x 174 x 297 mm / 16.6 x 6.9 x 11.7 inch

• Notes

• Entrées (DIN) :

  • 2 x microphone (200 Ohm) dont 1 commutable parole / musique
  • Pick-up (2 MOhm)
  • Magnétophone

  Sorties :

  • Sortie DIN
  • 4, 8, 16 Ohm, ligne 50, 100 Volt

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
