Clubflex CP3
Bouyer, Paul (Harmonic Radio); Montauban, Paris
- Country
- France
- Manufacturer / Brand
- Bouyer, Paul (Harmonic Radio); Montauban, Paris
- Year
- 1974–1976
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 284279
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Loudspeaker + integr.Amplifier
- Power type and voltage
- Dry Batteries / 8 x 1,5 Volt
- Loudspeaker
- 4 Loudspeakers / Ø 10 cm = 3.9 inch
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Clubflex CP3 - Bouyer, Paul Harmonic Radio;
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 130 x 563 x 125 mm / 5.1 x 22.2 x 4.9 inch
- Notes
-

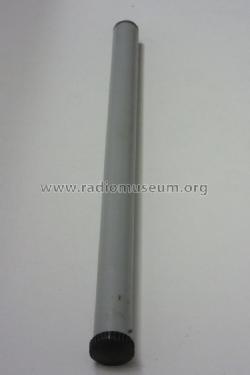

Ensemble portable comprenant une colonne RC6 à amplificateur 10 W, alimentée par 8 piles de poche, et un microphone type GM13.
4 runde Lautsprecher. Mikrofoneingang mit zwei 4mm-Buchsen, fernschaltbar über zwei 4mm-Buchsen. Lautstärke in 3 Stufen schaltbar, voreinstellbar über Potentiometer. Halterung für 25mm-Standrohr.
Das Modell CP3 besteht aus der Box mit eingebautem 10W-Verstärker sowie einem Mikrofon Type GM13
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Mentioned in
- -- Original prospect or advert (Selezione Radio-TV di tecnica, Giugno 1976)
- Literature/Schematics (1)
- -- Original prospect or advert (Katalog ELA II/74)
- Author
- Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
