Amplificateur ST150 150

Bouyer, Paul (Harmonic Radio); Montauban, Paris

Data
Forum
Pictures
Collections

  • Year
  • 1962–1968
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 116757

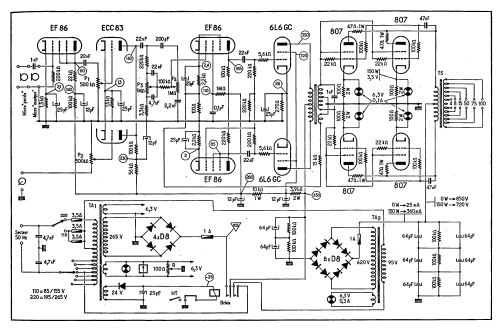

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 = 85-155; 195-265 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 150 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Amplificateur ST150 150 - Bouyer, Paul Harmonic Radio;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 420 x 220 x 420 mm / 16.5 x 8.7 x 16.5 inch
  • Notes

  • Ampli PU / Micro. Survolteur-dévolteur incorporé. Dispositif de protection en cas de débranchement ligne HP. Pise coupure HT avec relais de télécommande.

    Entrées :

    • 3 x microphone
    • 1 x pick-up

    Sorties :

    • 4, 8, 15, 75 et 100 Ohm, ligne 100 Volt
  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Price in first year of sale
  • 1,781.00 FRF
  • Mentioned in
  • Catalogue Comptoir TSF Sud-Est 1963
  • Literature/Schematics (1)
  • -- Schematic
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Tarif 2/68 (DE))
  • Author
  • Model page created by Sven Schmidt. See "Data change" for further contributors.
