• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165209

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

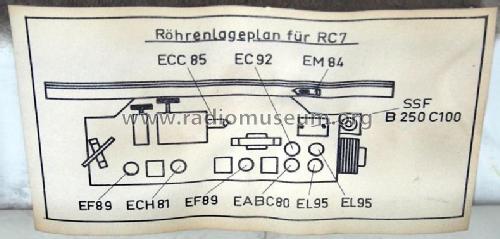

• ECC85 ECH81 EF89 EF89 EM84 EABC80 EC92 EL95 EL95

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Atelier 1-7 Ch= RC7 - Braun; Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 585 x 295 x 290 mm / 23 x 11.6 x 11.4 inch

• Notes

• Dreh- und abschaltbare Ferritantenne. Dazugehörig Lautsprecherbox L1 in gleicher Größe und Ausführung. Phono-Chassis = PC3. In Braun-Servicedokumentation als Atelier 1/7 bezeichnet. Vorjähriges Modell Atelier 1 mit EM80 statt EM84.

  Wellenbereiche: UKW 87,5 – 100 MHz, KW 4,8 – 15,7 MHz, MW 515 – 1620 kHz,
                              LW 150 – 360 kHz
  Abstimmung: getrennte AM/FM-Abstimmung mit Schwungradantrieb, automatische UKW-Rauschunterdrückung abschaltbar
  Gegentaktendstufe 7 W

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 540.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
