Audio-System P4000

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124099

• Picture
• Schematics

Previous Next

Previous Next

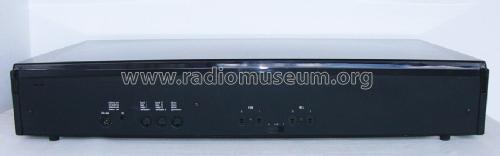

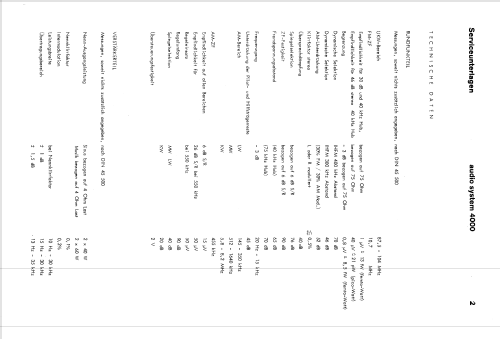

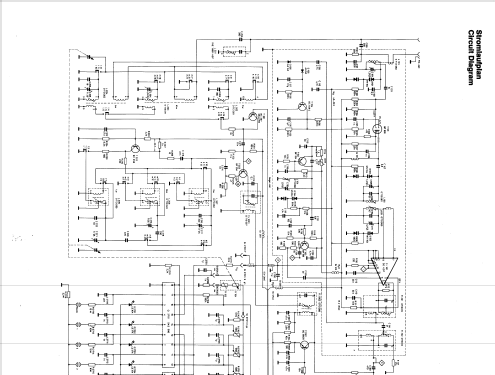

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 79

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Audio-System P4000 - Braun; Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 698 x 120 x 337 mm / 27.5 x 4.7 x 13.3 inch

• Notes

• ICs: 12.
  Kompaktgerät mit Rundfunkempfangsteil, Verstärker mit 2 Endstufen je 40 W (Sinus) und vollautomatischem Plattenspieler Braun P550SX mit Magnetsystem Shure M95G, 33 und 45 UpM.
  6 UKW-Stationsspeichertasten.
  Gehäuse anthrazitschwarz mit getönt, stufenlos verstellbarem Deckel.

• Net weight (2.2 lb = 1 kg)
• 16.3 kg / 35 lb 14.4 oz (35.903 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
