• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1970–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27995

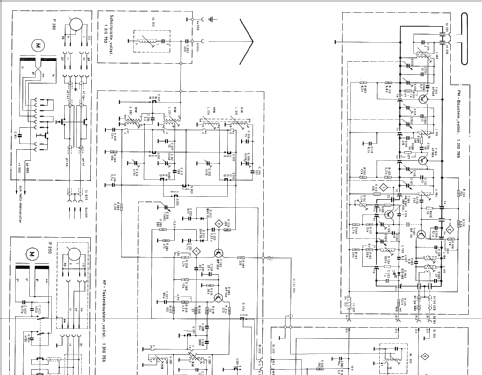

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 37

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

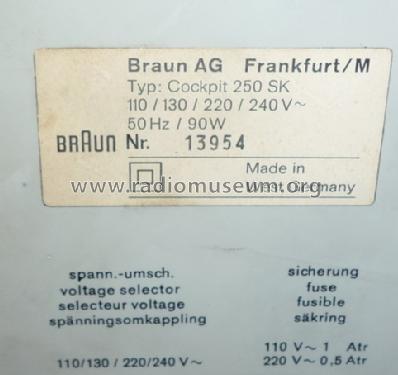

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: cockpit 250SK - Braun; Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 210 x 350 mm / 22.4 x 8.3 x 13.8 inch

• Notes
• Vollstereo, NF-Verstärker mit zwei Endstufen je 25 W (Musik); Plattenspieler mit Stereo-Magnetsystem Shure M71-G, Geschwindigkeiten: 33/45 UpM.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 1,298.00

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971

• Other Models

• Here you find 1067 models, 936 with images and 653 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
