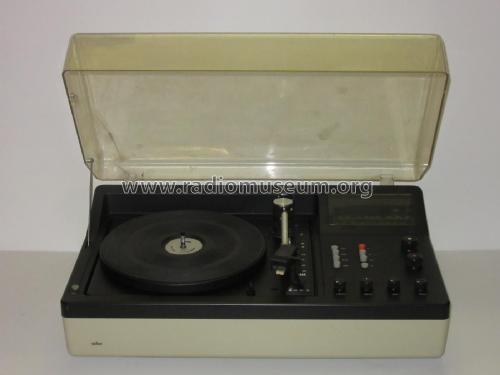

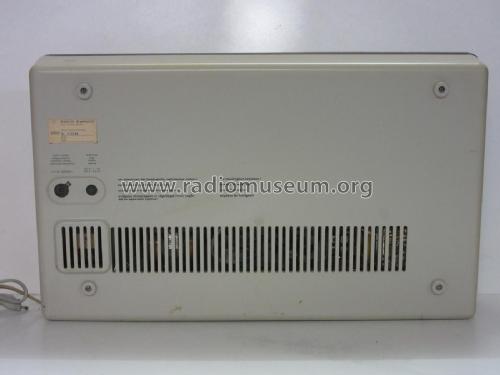

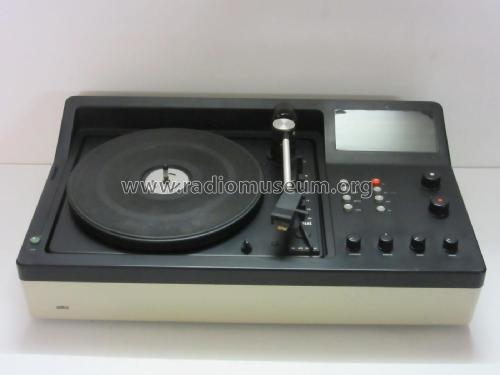

cockpit 250W
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1970–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27996

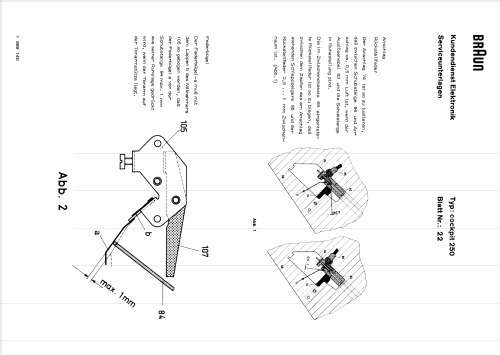

Aus Service-Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 37
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 9 AM circuit(s) 14 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: cockpit 250W - Braun; Frankfurt
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 230 x 350 mm / 22.4 x 9.1 x 13.8 inch
- Notes
- Vollstereo, NF-Verstärker mit zwei Endstufen je 25 W (Musik).
- Net weight (2.2 lb = 1 kg)
- 15.2 kg / 33 lb 7.7 oz (33.48 lb)
- Price in first year of sale
- 1,398.00
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1970/1971
