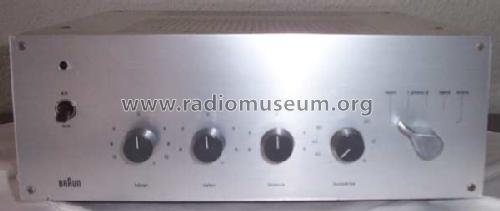

Stereoverstärker - Stereo Amplifier CSV10
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1962–1966
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 25746
aus Funkschau 1963, Heft 11
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 16 W (28 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereoverstärker - Stereo Amplifier CSV10 - Braun; Frankfurt
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 280 x 100 x 280 mm / 11 x 3.9 x 11 inch
- Notes
-
Halbleiter teilweise mehrfach vorhanden.
Braun Stereo-NF-Verstärker CSV10 mit 2 Gegentakt-Endstufen je 8 W Sinusleistung.
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Price in first year of sale
- 558.00 DM
- External source of data
- Erb
- Source of data
- Handbuch RFP 1963
- Mentioned in

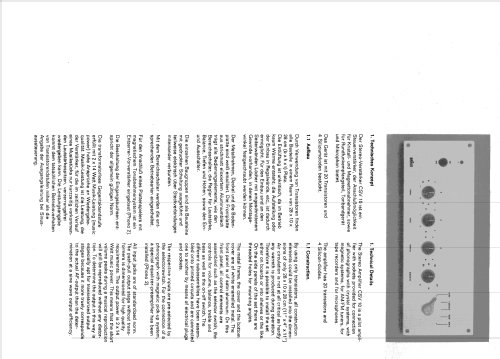

- -- Original-techn. papers.
