• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1955/1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20075

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 PL83 ECC82 PCL81 ECH81 PL81 PY83 DY80 EF80 EAA91 PCL81 MW43-64

• Number of Transistors

• Semiconductors
• OA150 OA159 OA160

• Main principle
• Superheterodyne (common); ZF/IF 25750/5500 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

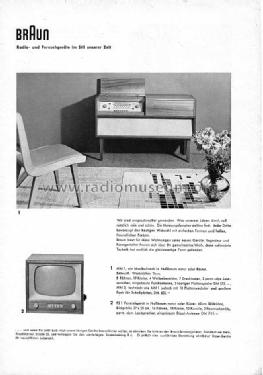

• Model: FS1 Ch= Telefunken FE11/43T - Braun; Frankfurt

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 475 x 425 mm / 20.3 x 18.7 x 16.7 inch

• Notes
• VHF Band I und III Empfang.
  Das Chassis von Braun FS1 entspricht Telefunken FE11/43T.

• Net weight (2.2 lb = 1 kg)
• 27.5 kg / 60 lb 9.2 oz (60.573 lb)

• Price in first year of sale
• 745.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56
