• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198497

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

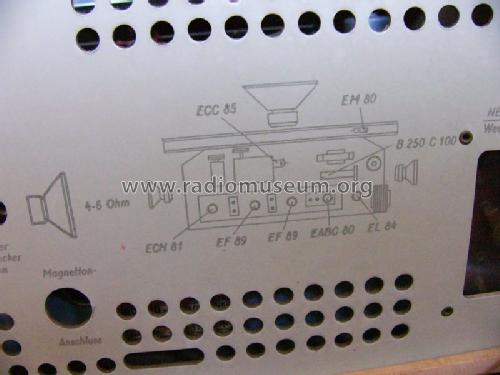

• ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

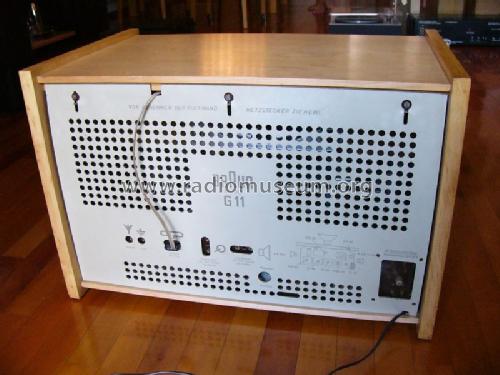

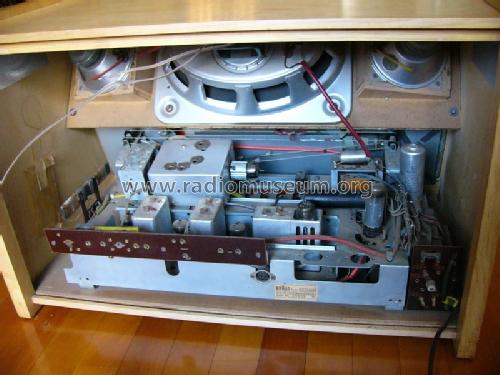

• Model: G11 RC-55 AUK - Braun; Frankfurt

• Shape

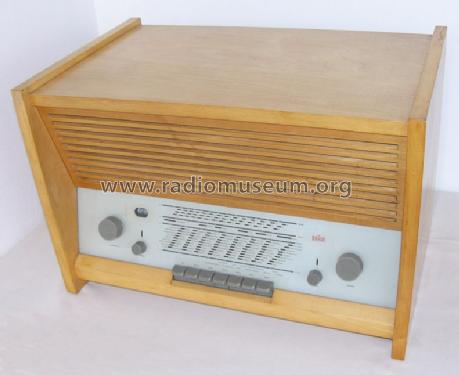

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 542 x 350 x 335 mm / 21.3 x 13.8 x 13.2 inch

• Notes
• Obwohl das Chassis auf dem Typenschild mit RC 55 AUK bezeichnet ist, handelt es sich technisch um das Chassis RC60. Siehe auch die Diskussion unter dem Schwestermodell G11 RC 56 AUK

• Author
• Model page created by Gerhard Wickern. See "Data change" for further contributors.
