Hi-Fi-Steuergerät TS45 Ch= TC45

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1403

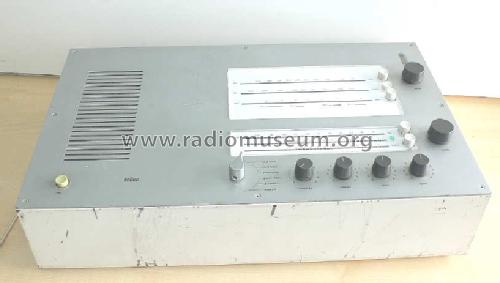

• Picture
• Schematics

Previous Next

Previous Next

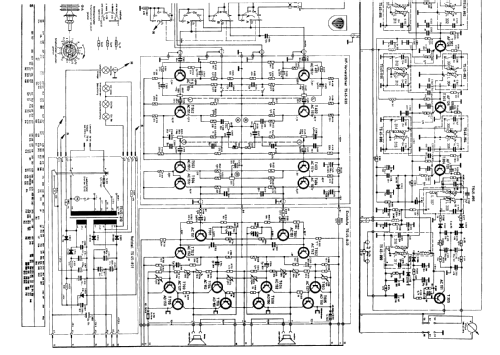

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 39

• Semiconductors
• AF106 AF124 AF124 AF125 AF125 AF125 AF126 AF126 AF126 AF126 AF116 AC152 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC152 AC152 AC152 AC152 AC127 AC127 AD150 AD150 AD150 AD150

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 115; 130; 160; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Hi-Fi-Steuergerät TS45 Ch= TC45 - Braun; Frankfurt

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 470 x 280 x 110 mm / 18.5 x 11 x 4.3 inch

• Notes
• Braun Hi-Fi-Steuergerät TS45.
  Tischgerät mit Vorrichtung für Wandaufhängung; Stereo-Decoder eingebaut, Mono/Stereo-Umschaltung von Hand; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 12 W (Sinus).
  VDRG-Handbuch 1964 führt 35 + 4 Transistoren für den Stereo-Decoder, der immer fest eingebaut ist. Die Schaltung von TS45 entspricht der 1. Ausführung des Braun Audio 2 mit Chassis TC45.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Price in first year of sale
• 1,145.00 DM

• Source of data
• Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
