• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1960–1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1380

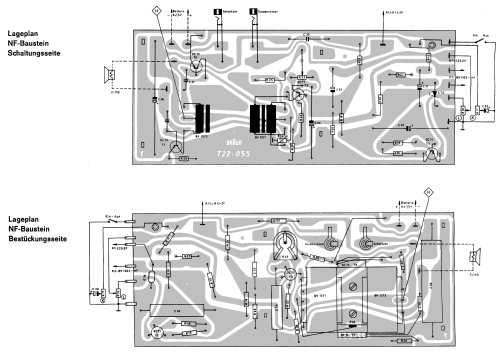

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC169 OC169 OC71 OC71 OC74 OC74 OA70 E75C5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

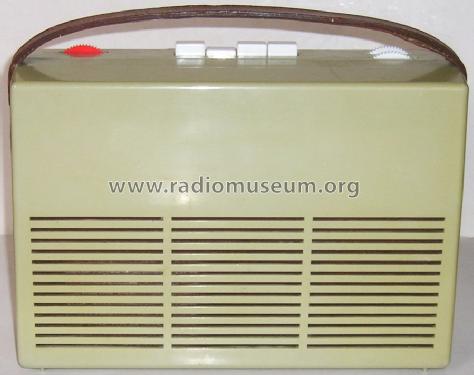

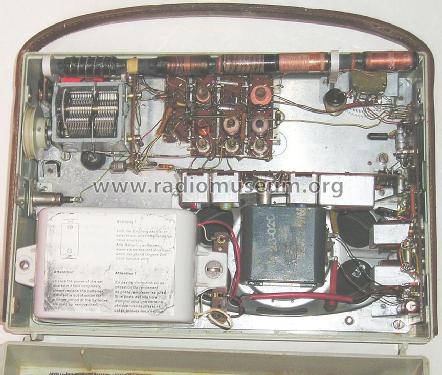

• Model: Kofferempfänger T24 - Braun; Frankfurt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 285 x 205 x 95 mm / 11.2 x 8.1 x 3.7 inch

• Notes
• Bestückung des 1. ZF-Transistors auch mit sel. OC169R (rauscharm); lt. Hersteller auch HF-Bestückung mit AF116 und 2x AF117.
  Anschlüsse für PU, Schaltuhr und ext. Antenne. Isophon-Lautsprecher P1018/19/10 Z=150 Ohm.
  Das Modell gab es auch mit englischer Beschriftung: Skala = long / medium / short, Tasten = on-off / long / medium / short.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 210.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• Funk-Technik (FT) (17/1960, S. 619 / Neu im Braun-Programm)
