Lectron Demo-Ausbausystem 3 3003
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1970 ?
- Category
- Teaching aids-material
- Radiomuseum.org ID
- 253959
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / 220 / 5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Lectron Demo-Ausbausystem 3 3003 - Braun; Frankfurt
- Notes
-

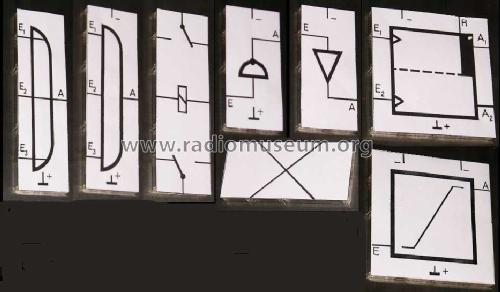

Fund von Bausteinen (Entwicklungsmuster) zu einem Demonstrations-Prototyp des Lectron Ausbausystem 3 mit einigen mehrfach größeren Logik-Bausteinen in 2014.
Diese Modellseite soll die Fotos der Bausteine aufnehmen; bei neueren Erkenntnissen erfolgt eine entsprechende Anpassung.
- Mentioned in
- RWO-Halle
- Author
- Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
