• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1959–1963

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 20071

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electrostatic Loudspeaker (high bias DC voltage)

• Material
• Metal case

• from Radiomuseum.org

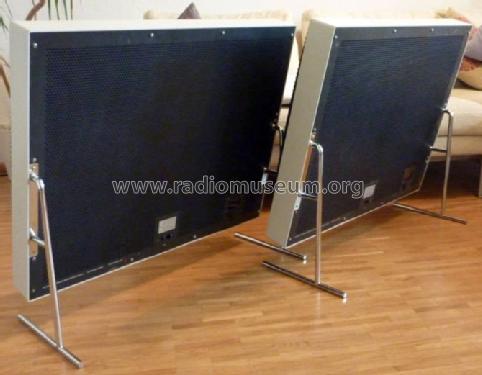

• Model: Lautsprecher-Einheit LE1 - Braun; Frankfurt

• Dimensions (WHD)
• 880 x 770 x 320 mm / 34.6 x 30.3 x 12.6 inch

• Notes
• Elektrostatisches Lautsprecher-System, 45-18000 Hz ± 3 dB, Belastbarkeit max. 15 W; zum Anschluss an Studio 2, CSV13 oder CSV60.
  Eingangsimpedanz 15 Ohm.
  Anpassungsübertrager und Stromversorgung eingebaut,
  Spannungsvervielfacher erzeugt 1650 und 6500 V zur Polarisation.
  Lizenzfertigung der Acoustical Mfg. Co. Ltd. Huntingdon, England (System Quad).

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• Price in first year of sale
• 795.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61
