• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1956–1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98523

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

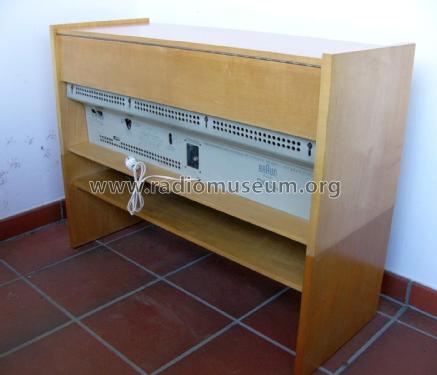

• Model: Radio-Phono-Kombination PK-G4 Ch= RC61 - Braun; Frankfurt

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 950 x 655 x 365 mm / 37.4 x 25.8 x 14.4 inch

• Notes
• Mehrpreis für Schallplattenschrank = 110,- DM.

• Net weight (2.2 lb = 1 kg)
• 30.4 kg / 66 lb 15.4 oz (66.96 lb)

• Price in first year of sale
• 630.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
