• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1978–1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 143255

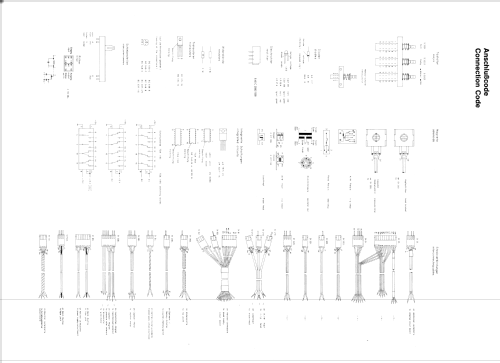

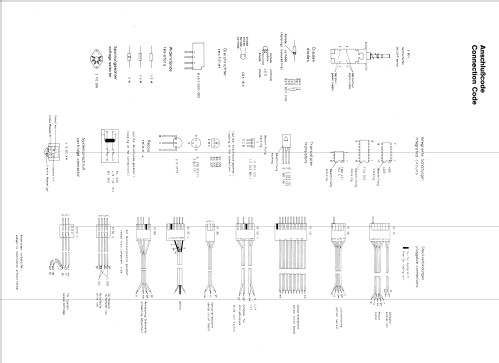

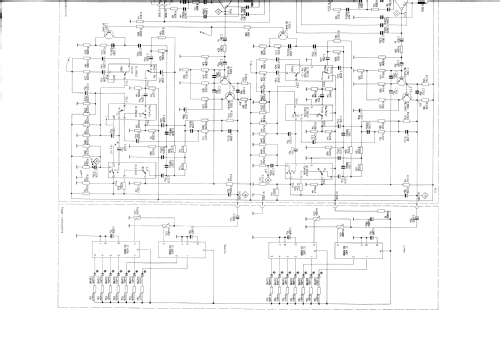

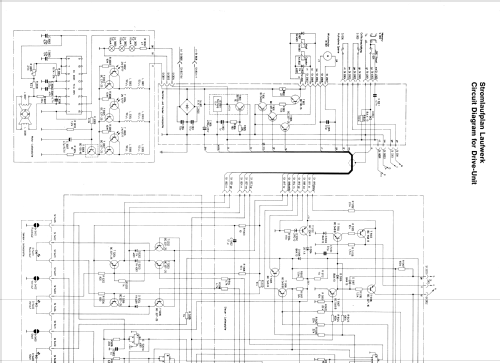

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player + Cassette Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: studio system PC1 integral - Braun; Frankfurt

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 605 x 65 x 330 mm / 23.8 x 2.6 x 13 inch

• Notes
• HiFi-Plattenspieler (33 und 45 Upm) - Cassettendeck-Kombi.
  Plattenspieler mit Direktantrieb, Suchlauf, Tonabnehmer Shure V15III. Plattenteller 290mm 1.6kg.
  Cassettendeck mit 2 Motoren, Dolby-NR, Bandsortenwahlschalter, 2 LED-Ketten für Aussteuerungsanzeige. 20-16000 Hz (FeCr).
  Gehäusefarbe Schwarz oder Grau.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 1061 models, 931 with images and 652 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Braun; Frankfurt
