• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1966 ?

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 197471

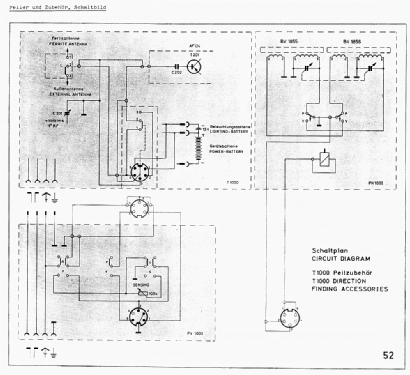

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

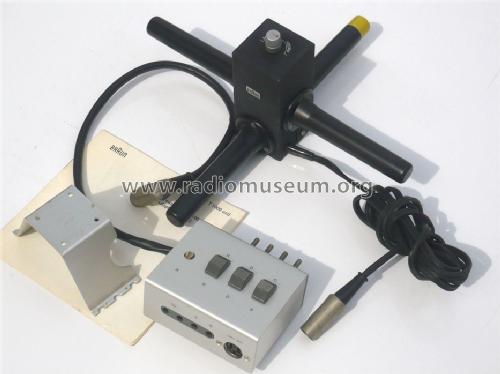

• Model: Peilvorsatz PV1000 - Braun; Frankfurt

• Shape
• Miscellaneous shapes - described under notes.

• Notes
• Braun Peilvorsatz PV1000;
  Im Zusammenspiel mit dem Braun Peilkreuz PK1000 und dem Braun T1000 SFaP Ch. T1010, basierend auf der Standardausführung des T1000 nach Umrüstung für den Peilbetrieb. Ferrit-Kreuz für ~300 - 400 kHz Langwellenbereich,
