• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106969

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DF91 DK40 DF91 DAF91 DL41

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 125; 220; 245 AC; 220 DC; 90; 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

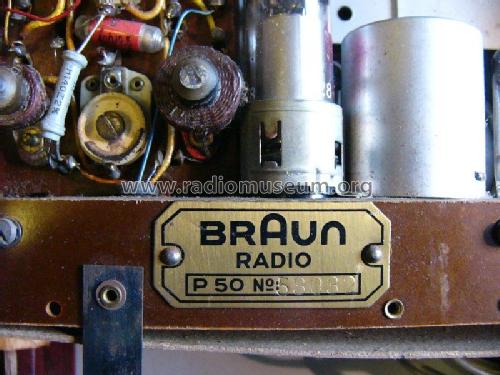

• Model: Piccolo 50a - Braun; Frankfurt

• Shape
• Portable set > 8 inch (also usable without mains)

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
