• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99801

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EC92 EC92 ELL80 ELL80

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

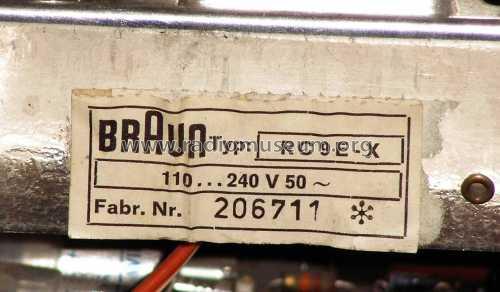

• Model: Steuergerät RCS9 Ch= RC9E-X [Export] - Braun; Frankfurt

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 562 x 195 x 280 mm / 22.1 x 7.7 x 11 inch

• Notes
• FM-Bereich 87,5 - 108 MHz;
  Stereo-Decoder TD901 eingebaut;
  NF-Leistung 2×9 W.
  Siehe auch Braun RCS9 mit UKW, KW, MW und LW-Bereich.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)

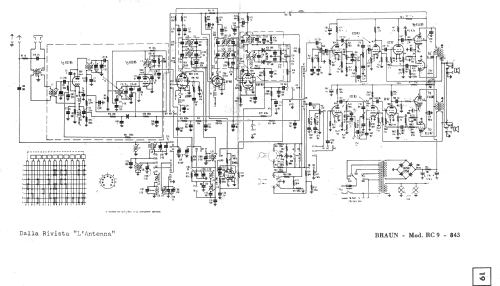

• -- Schematic

• Author
• Model page created by Joachim Glüder. See "Data change" for further contributors.
