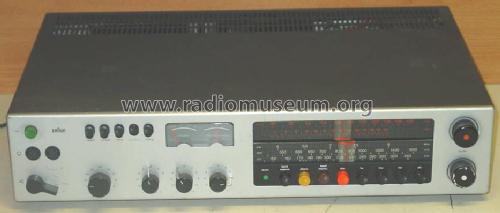

Regie 520 CEV520

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86122

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 71

• Semiconductors
• BF256 AF106 BF353 BF343 BF167 BF194 BF342 BC147 BC149 BC159 BC157 BC414 BC110 BC172 BC139 BC148 BC308 BC158 BD136 BD237 BD238 2N3055 or. BD182 SFC6011 SFC6012 µA796 AA143 BAX13 SFD143 AA116 ZE2 ZW8,2 ZPD6,8 BZX85 or. ZPD15 B80C5000/3300 B60C250

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (140 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Regie 520 CEV520 - Braun; Frankfurt

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 110 x 340 mm / 19.7 x 4.3 x 13.4 inch

• Notes

• ICs: 6.

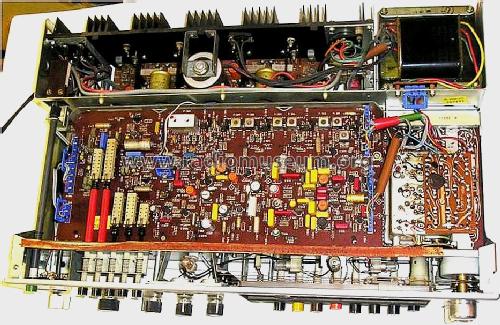

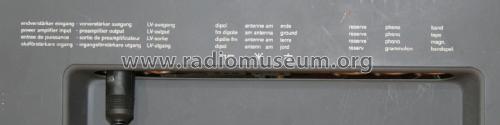

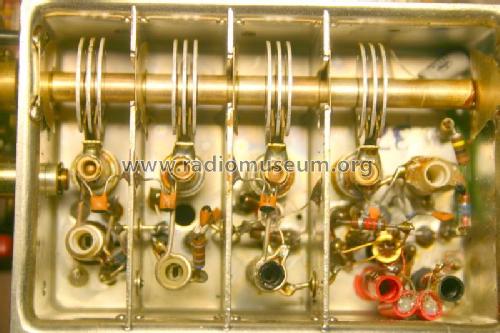

  Braun Stereo-Receiver Regie 520.

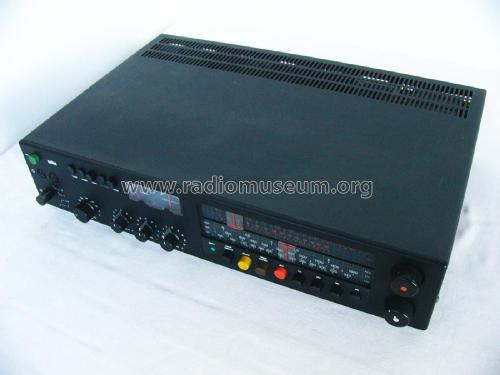

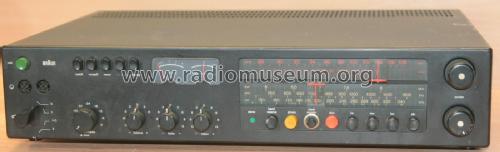

  Ausgangsleistung: 2× 50 W (Sinus) an 4 Ohm; Ausgänge für zwei Lautsprechergruppen. 2 x 70 W Musik, Ausführung: Kräusellack und anthrazit.Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

  Halbleiterliste: nur einmal pro Typ.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 1,489.00 DM

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
