RS12 Ch= RC9
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1961–1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 24814
Foto: Felix Dillmann
eingebauter Dual 1010 nicht original

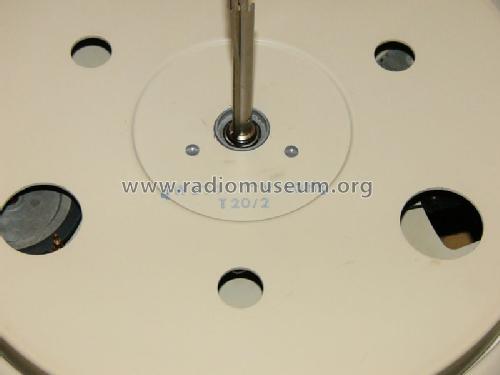

Tonabnehmer T20/2

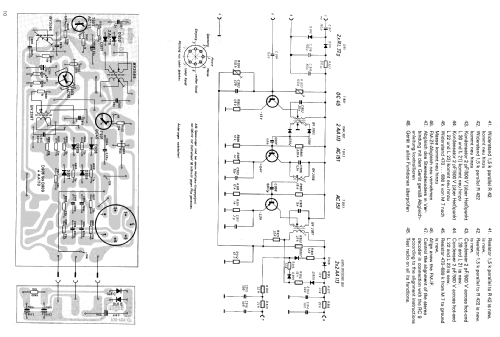

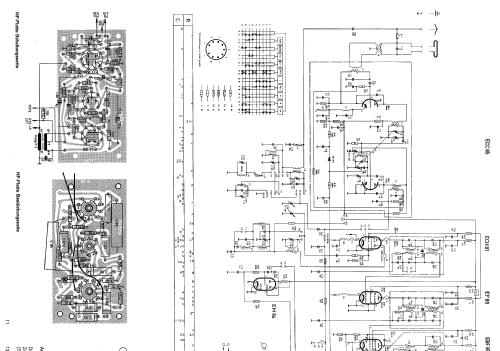

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: RS12 Ch= RC9 - Braun; Frankfurt
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1005 x 725 x 380 mm / 39.6 x 28.5 x 15 inch
- Notes

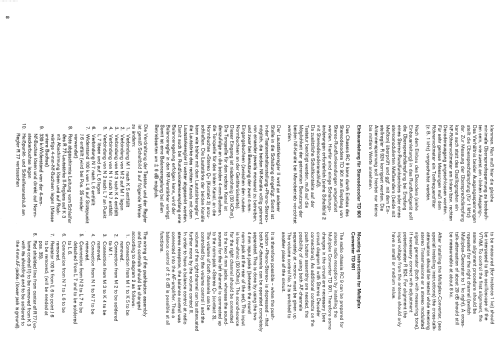

- Grundteil des Stereo-Musikschrank R12 mit dem Chassis RC9; Stereo-Decoder TD901 nachrüstbar. Technische Daten wie Atelier 2, jedoch mit Phono-Chassis Telefunken TW504MB und Tonabnehmersystem T20/2. Stereo-NF-Verstärker mit 2 Endstufen je 7 W.
Holzfurnier wahlweise Nussbaum oder Teak. Fußgestell aus Stahl, abnehmbar.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Price in first year of sale
- 995.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Literature/Schematics (1)

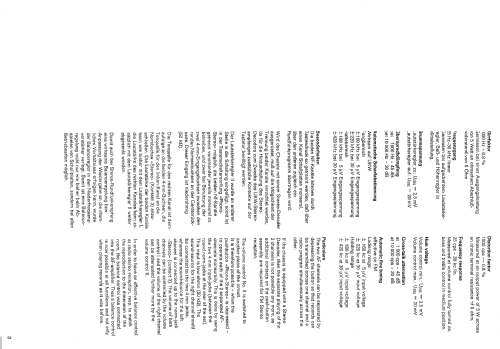

- -- Original-techn. papers.
