Stereo-Steuergerät TC20

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1963–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1401

• Picture

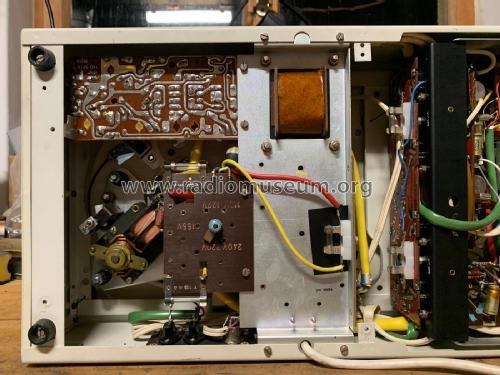

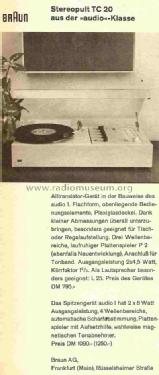

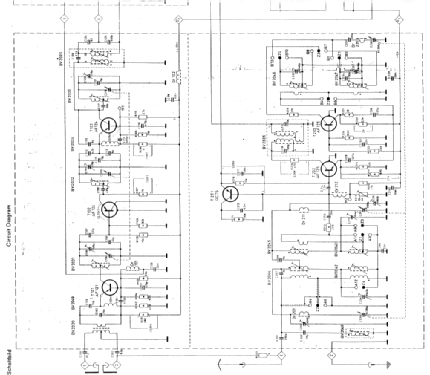

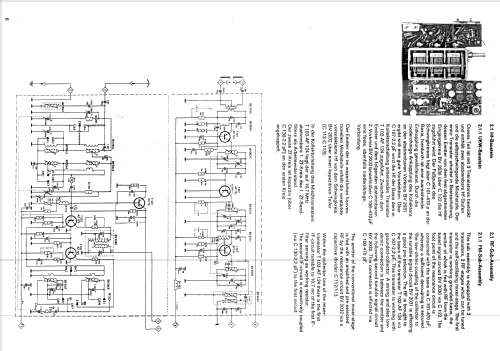

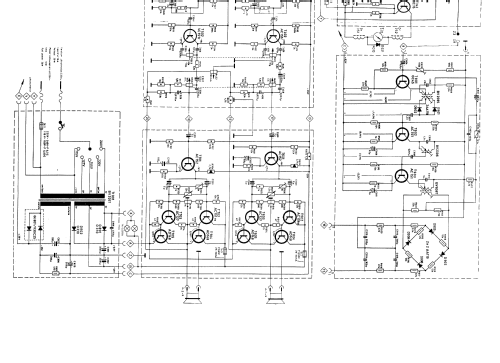

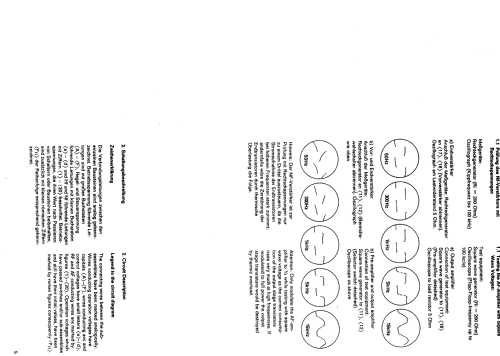

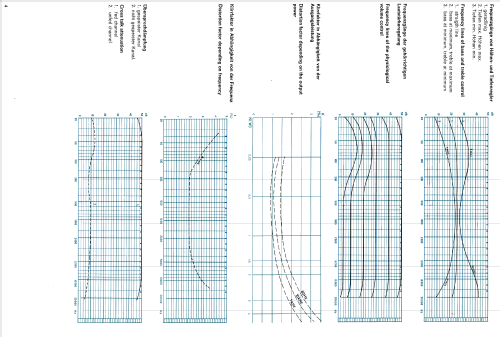

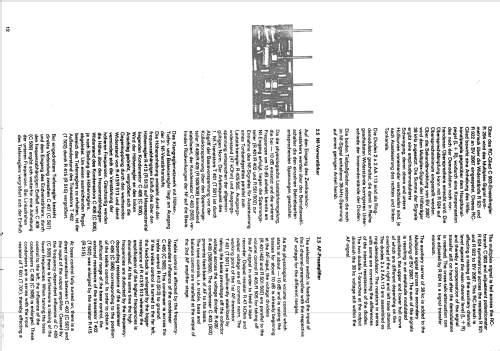

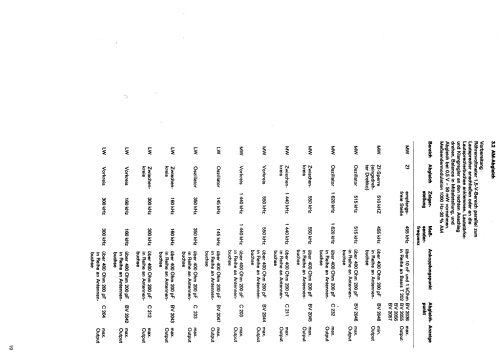

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• AF121 AF124 AF125 AF126 OC75 OC45 AC151 AC151r AC152 AC127 AD148

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 11 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 115; 127; 155; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo-Steuergerät TC20 - Braun; Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 522 x 145 x 245 mm / 20.6 x 5.7 x 9.6 inch

• Notes

• Stereo-Decoder TD20 (59,- DM) nachrüstbar; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 4 W.
  Phono-Chassis = P2.
  Mit werkseitig eingebautem Decoder = TC20S.
  Jeder Transistortyp nur 1x gelistet.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 795.00 DM

• Source of data
• Handbuch RFP 1963 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch VDRG 1967/1968
