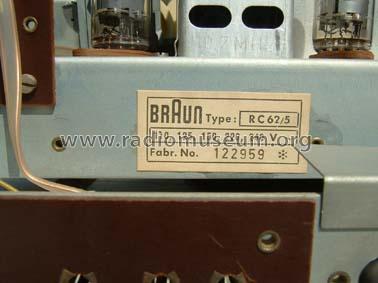

Studio 1 Ch= RC62/5

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1341

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

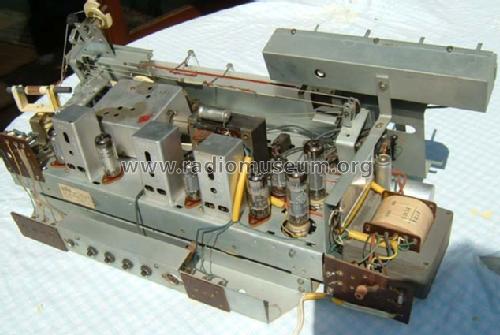

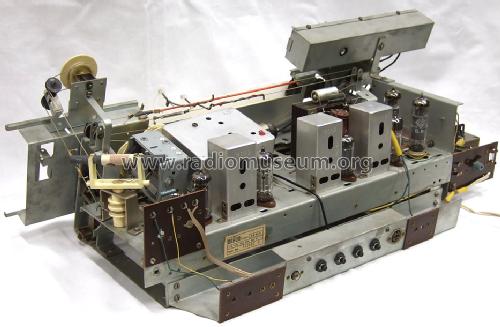

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Studio 1 Ch= RC62/5 - Braun; Frankfurt

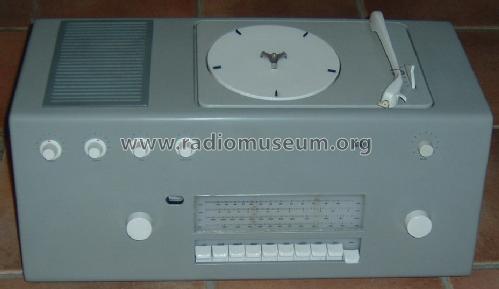

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 610 x 235 x 300 mm / 24 x 9.3 x 11.8 inch

• Notes

• Dreh- und abschaltbare Ferritantenne. Gehäuse aus grauem Polyester.
  Phono-Chassis = PC3.
  Eine Lautsprecherbox Typ L3 (1000×485×690 mm) mit 5 LS gehört zum Lieferumfang.

  Gestaltung: Hans Gugelot unter Mitwirkung von Herbert Lindinger.
  Konzeption 1956 bis 1957, Produktion Braun ab Januar 1958.
  [aus: Systemdesign, Bahnbrecher: Hans Gugelot 1920-1965,
  Birghäuser Verlag Basel-Boston]

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 1,080.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.
