• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 328280

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

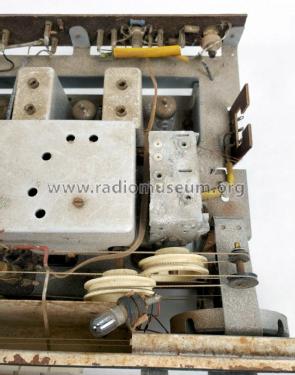

• Model: Super 77 ? Ch= RC56UK Super RC56/Am - Braun; Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Notes

• Das Braun-Chassis RC56UK mit Schema RC56/Am ist die Exportausführung für die USA des inländischen Modells 77 UKW. Feststehende Ferritantenne. Getrennte Höhen- und Tiefenregler.

  FM 87-108 MHz, SW1 11.8-23 MHz, SW2 5.8-12.7 MHz, BC 525-1650 kHz. Der BC (MW) Bereich hat CD-Marken für die Frequenzen der US-Zivilverteidigung (Civil Defense) 640 und 1240 kHz.

  ---

  Braun export chassis RC56UK with schematic RC56/Am features these wave bands: FM 87-108 MHz, SW1 11.8-23 MHz, SW2 5.8-12.7 MHz, BC 525-1650 kHz. BC dial has CD-marks to indicate the civil defense frequencies 640 and 1240 kHz. See the forum article Conelrad: radio meets the civil defense.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
